SB10110-45
Model：SB101110-45
Introduction

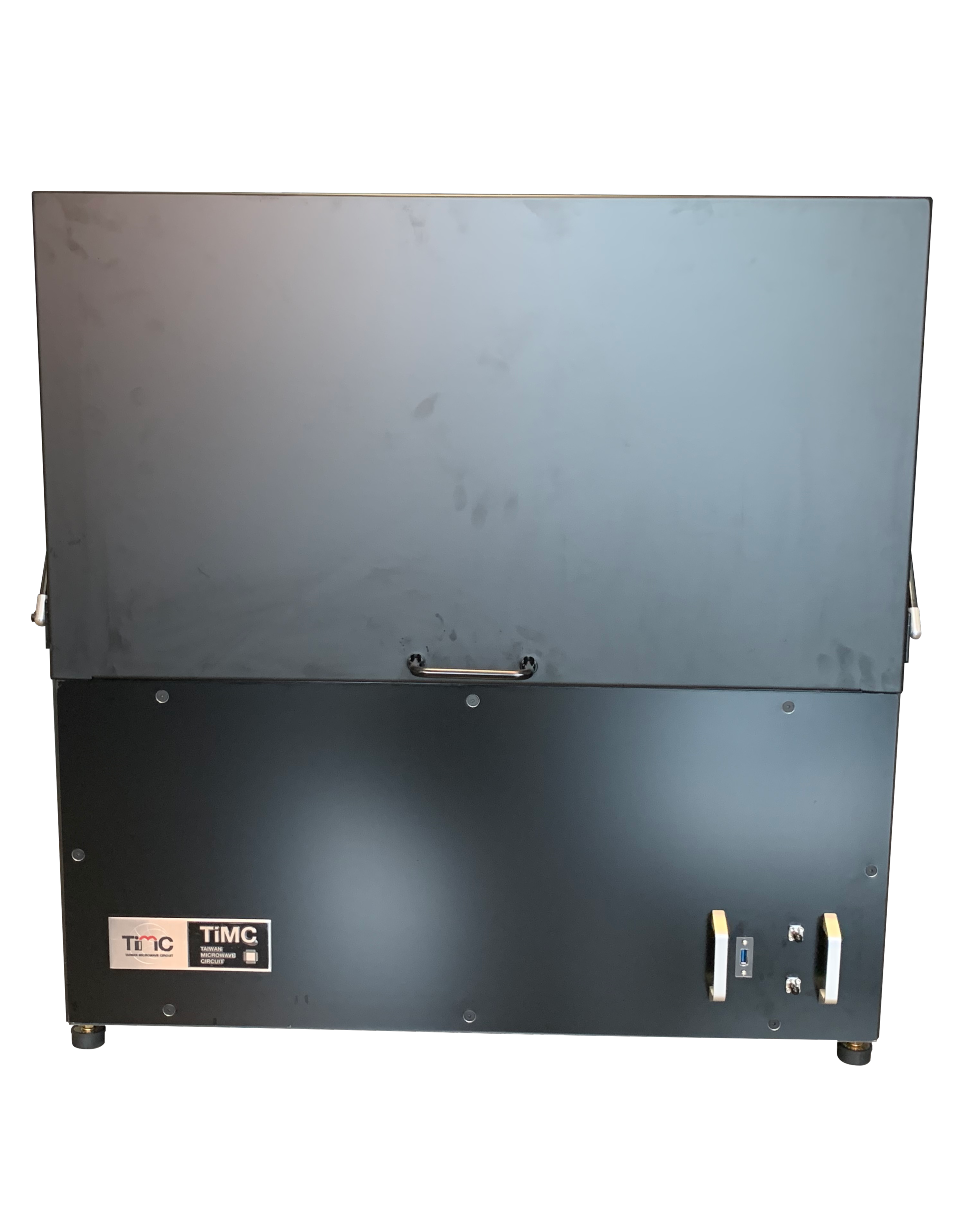

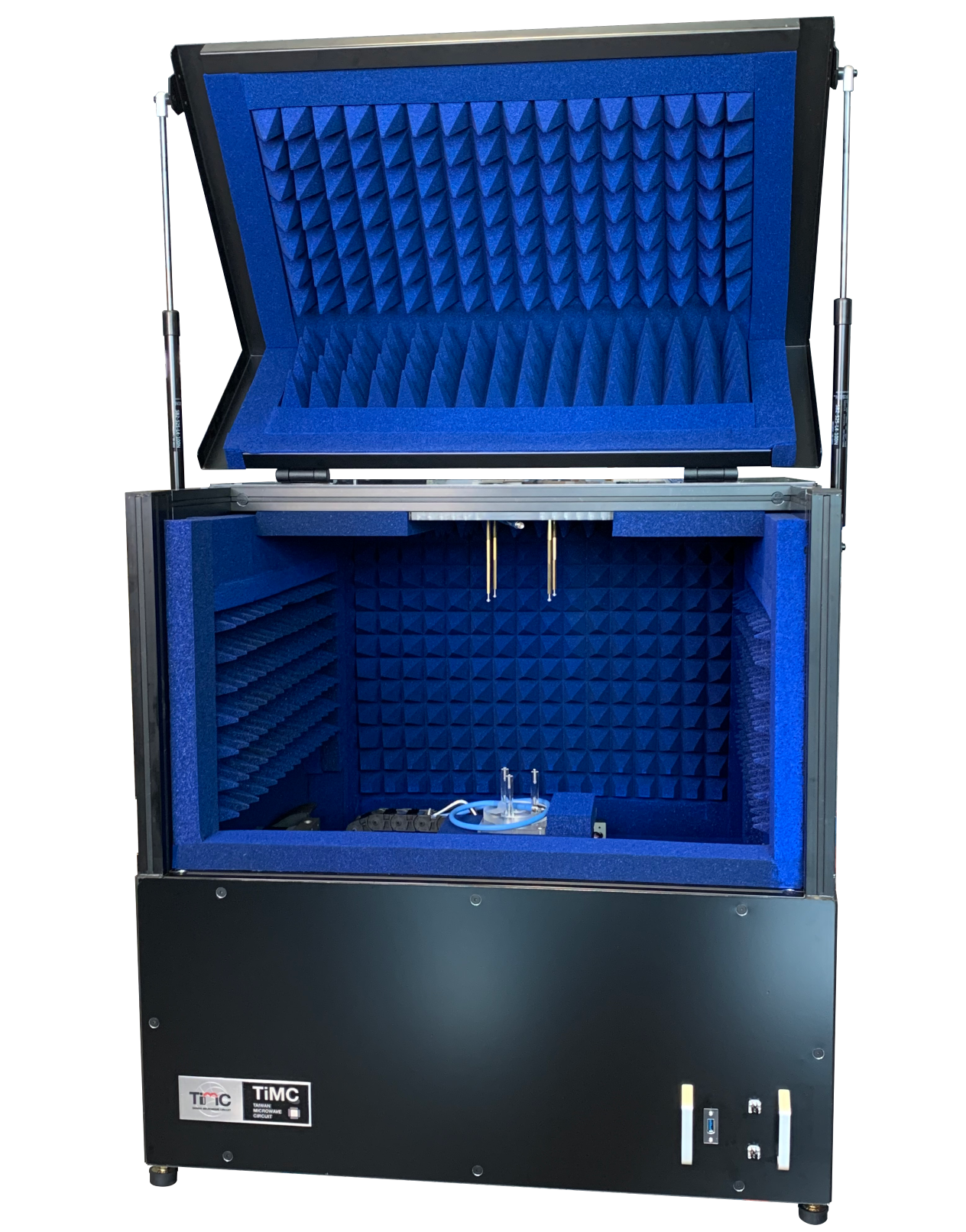

- Medium table-top antenna measurement box, suitable for laboratory stage testing of antennas with unknown characteristics
Feature
- Medium table-top antenna measurement box, suitable for laboratory stage testing of antennas with unknown characteristics
- High accuracy：The near-field antenna measurement method has high accuracy and sensitivity, can capture small changes in the antenna, and provide more accurate test results. Therefore, the near-field antenna measurement method is widely used in various high-demand antenna tests.
- Small space occupation：Compared with far-field antenna testing, near-field antenna measurement only requires a smaller testing space, making it easier to arrange and manage. This also makes high-scale antenna array has more flexible in design and testing.
Machine Parameters
Measurement parameters
| Size (W x L x H) | 0.75 x 0.75 x 0.75 (m^3) |
|---|---|
| Weight | 60 (kg) |
| Number of ports | RF port：2 |
| Port type | RF port：2.92-F |
| Frquency | 10-110GHz |
|---|---|
| DUT size | 30 x 30 (𝑐𝑚^3) |
| DUT weight | 5 kg |
