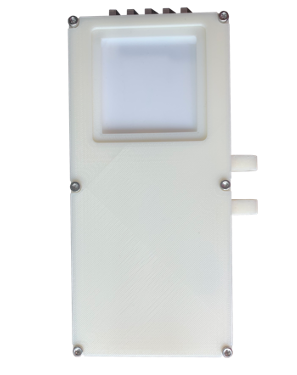

Active MM Wave Antenna
Model: 4X4-5GAESA
FEATURES：
- Achieves high-precision beamforming and direction control.
- Has high anti-interference capability.
- Provides more stable communication quality or radar detection performance.
- Allows for rapid direction adjustment and multi-beam operation.
Machine Parameters
RF Parameters
Other
| Size (W x L x H) | 6 x 6 x 3 (cm^3) |
|---|---|
| Weight | 100 (g) |
| Number of ports | RF port：1 |
| Port type | RF port：2.92-F |
| Gain Control | 4 bit@ 0.5dB |
|---|---|
| Phase Control | 6 bit@ 5.6degree |
| RF Frequency (GHz) | 26.5 – 29.5 GHz |
| TX Mode | |
| Gain | 36.9 dBi |
| EIRP (at OP1dB) | 32.2 dBm |
| RX Mode | |
| Gain | 32 dBi |
| iP1dB | 2.2 dBm |
| T/R switch | YES |
|---|---|
| Power in (DC/ A) | 12 Vdc/ 1A |
| Fan | No |
| Operating Temperature | −20 𝑜𝐶 to +65 𝑜𝐶 |
